Oil Pump Overhaul
>>
Exploded View
Exploded View

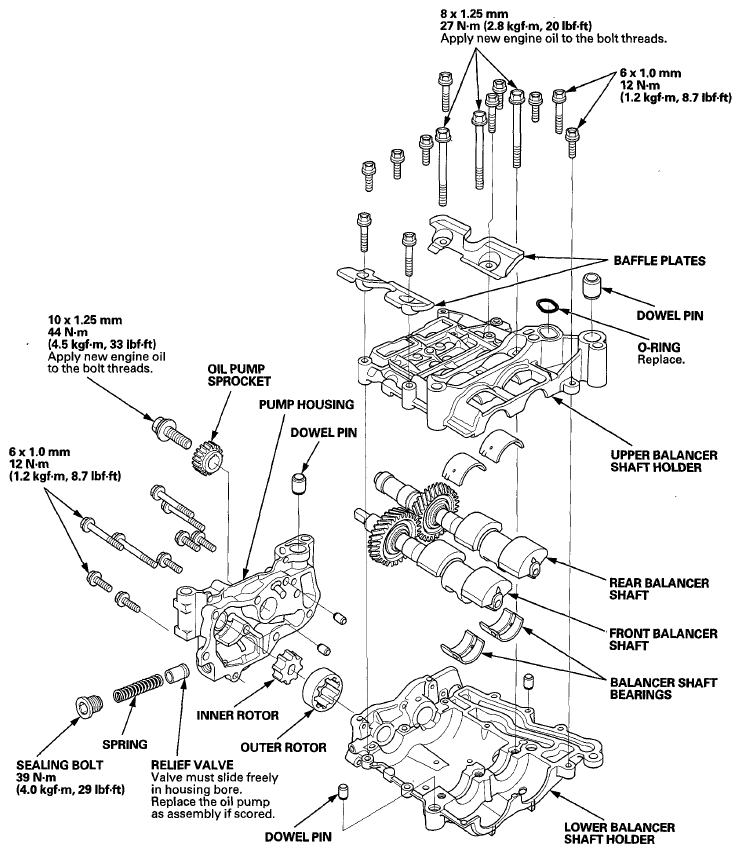

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
Refer to the
EXPLODED VIEW
if needed during this procedure.
