Oil Jet Replacement

  1. Remove the oil pump (see OIL PUMP REMOVAL  ).
  2. Remove the baffle plate (see step 10 under CRANKSHAFT AND PISTON REMOVAL ).
  3. Remove the oil jet bolts (A), then remove the oil jets (B).

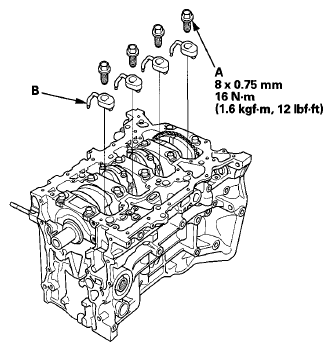

    Fig 1: Oil Jet Bolts And Oil Jets With Torque Specifications
    G07341192Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Carefully install the oil jets, and tighten the oil jet bolts.
  5. Install the baffle plate (see step 26 under CRANKSHAFT INSTALLATION ).
  6. Install the oil pump (see OIL PUMP INSTALLATION  ).
