Engine Oil Gallery Cap Replacement

  1. Remove the harness bracket (A), then remove the engine oil gallery cap (B).

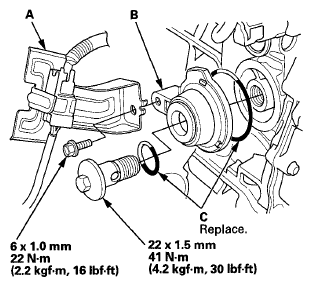

    Fig 1: Harness Bracket, Engine Oil Gallery Cap And O-Ring Groove And Mating Surface With Torque Specifications
    G07341191Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Clean the O-ring groove and mating surface with the engine oil gallery cap.
  3. Apply new engine oil to new O-rings (C). Install the engine oil gallery cap with O-rings, then install the harness bracket.
