Component Location Index

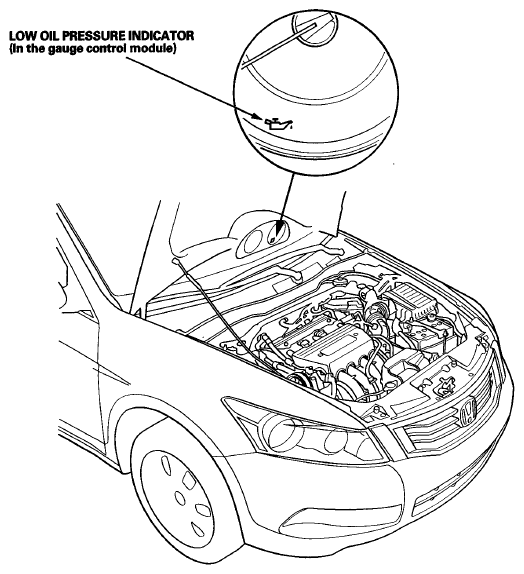

Fig 1: Identifying Engine Lubrication Component Location (1 Of 2)
G07341174Courtesy of AMERICAN HONDA MOTOR CO., INC.

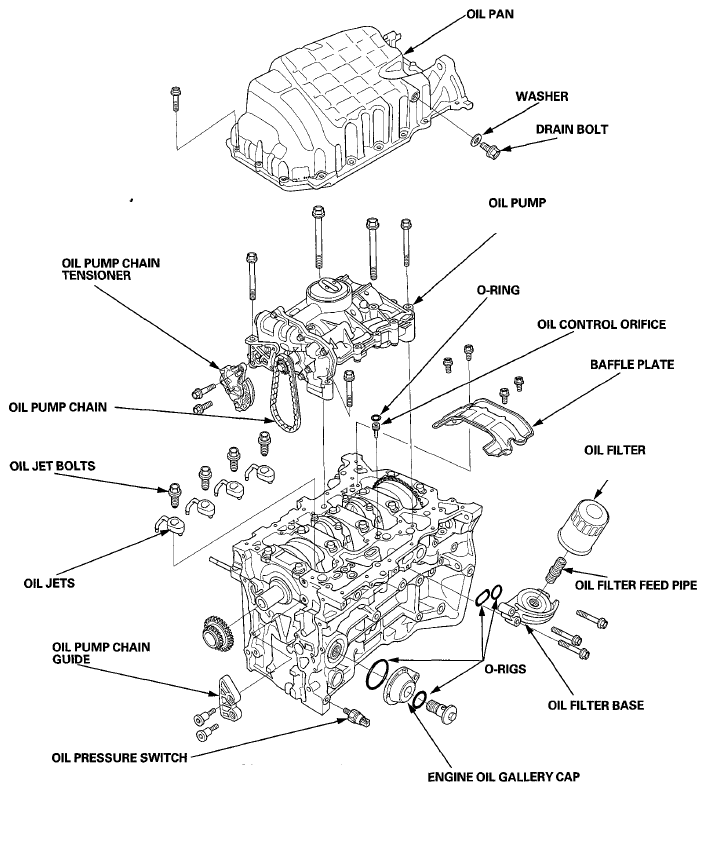

Fig 2: Identifying Engine Lubrication Component Location (2 Of 2)
G07341175Courtesy of AMERICAN HONDA MOTOR CO., INC.
