Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, rewriting the ODO data and transferring the Maintenance Minder data to a new gauge control module (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER™ DATA TO A NEW GAUGE CONTROL MODULE  ).
  1. Remove the instrument visor (see INSTRUMENT VISOR REMOVAL/INSTALLATION ).
  2. Remove the three screws from the gauge control module (A).

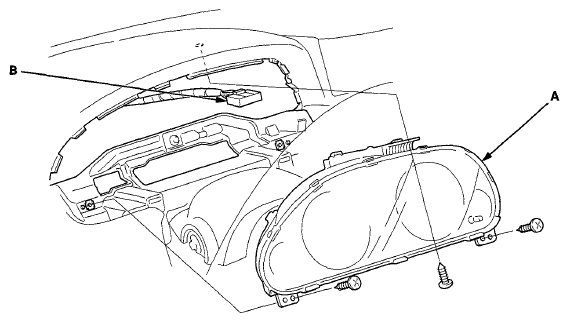

    Fig 1: Identifying Gauge Control Module And Connector
    G07344773Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 32P connector (B) from the gauge control module.
  4. Install the gauge control module in the reverse order of removal.
  5. Rewriting the ODO data and transfer the Maintenance Minder data to a new gauge control module (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER™ DATA TO A NEW GAUGE CONTROL MODULE  ).
    NOTE: Check the official Honda website for more information on how to write odometer information to a gauge control module that will not communicate with the HDS.
