Yaw Rate-Lateral Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools when replacing the sensor.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Disconnect the yaw rate-lateral acceleration sensor 5P connector (A), then remove the yaw rate-lateral acceleration sensor (B).

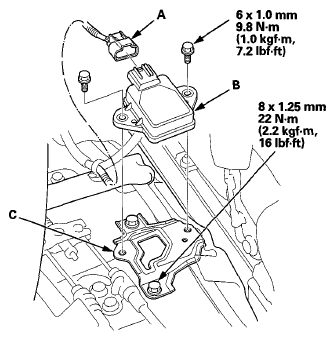

    Fig 1: Identifying Yaw Rate-Lateral Acceleration Sensor 5P Connector
    G07343298Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for deformation in the bracket (C). If necessary replace it.
  5. Install the yaw rate-lateral acceleration sensor in the reverse order of removal.
  6. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
