Rear Power Window Motor Test

Remove the rear power window switch (see 2-DOOR ).
Test the motor in each direction by connecting battery power and ground to the rear power window switch 14P Connector (A) according to the table.

Fig 1: Rear Power Window Motor Position Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Rear Power Window Switch 14P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4.
Remove the door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P Connector (A) from the rear power window motor (B).

Fig 3: Identifying 2P Connector And Rear Power Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check for continuity between the rear power window switch 14P Connector terminals and rear power window motor 2P Connector terminals as shown. There should be continuity.

Connector TERMINALS REFERENCE CHART

Rear power window switch 14P Connector	Rear power window motor 2P Connector
1 (BRN)	1 (BRN)
7 (RED)	2 (RED)

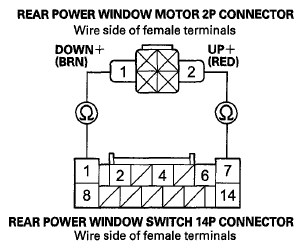

Fig 4: Checking Continuity Between Rear Power Window Switch 14P Connector Terminals And Rear Power Window Motor 2P Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If there is no continuity, repair an open or high resistance in the wire(s). If the wire harness is OK, the front passenger's power window motor is faulty; replace the front passenger's regulator (see FRONT DOOR GLASS AND REGULATOR REPLACEMENT ).
