Front Passenger's Power Window Switch Replacement: 4-Door

Carefully remove the front passenger's power window switch (A).

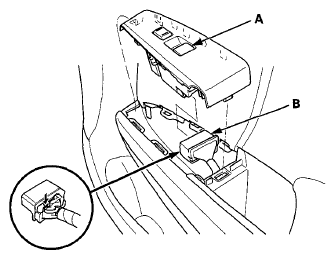

Fig 1: Identifying Front Passenger Power Window Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 37P Connector (B) from the front passenger's power window switch.
Remove the four screws and the front passenger's power window switch (A).

Fig 2: Identifying Front Passenger Power Window Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal.
With AUTO UP/AUTO DOWN function: Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
