Power Windows (4-CYL)
>>
Component Location Index
Component Location Index

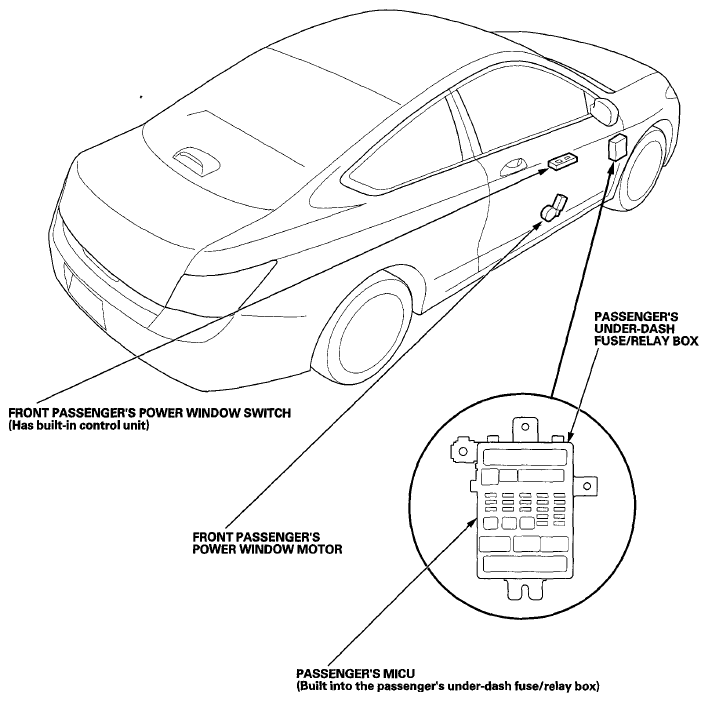

Fig 1: Identifying Power Windows Components Location (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

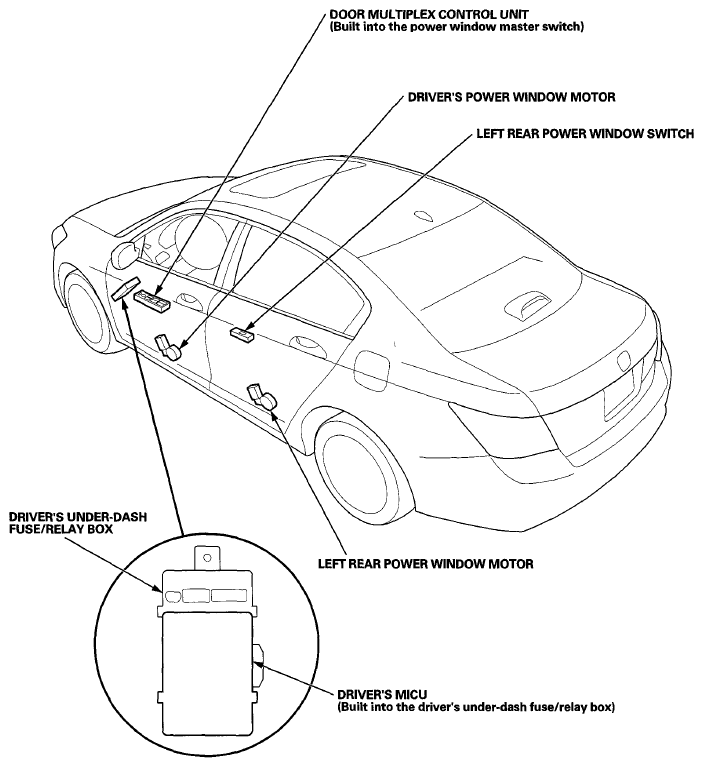

Fig 2: Identifying Power Windows Components Location (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

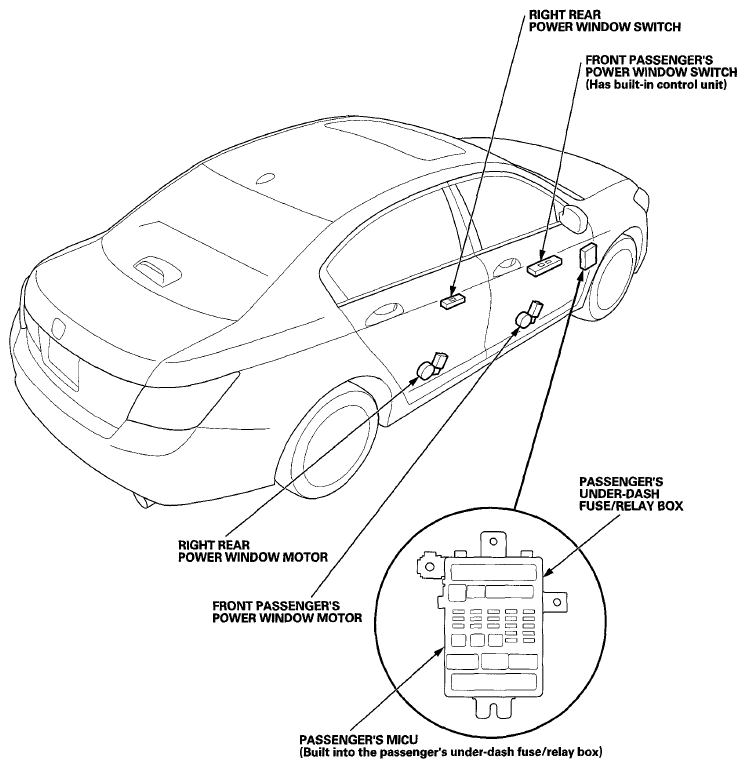

Fig 3: Identifying Power Windows Components Location (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

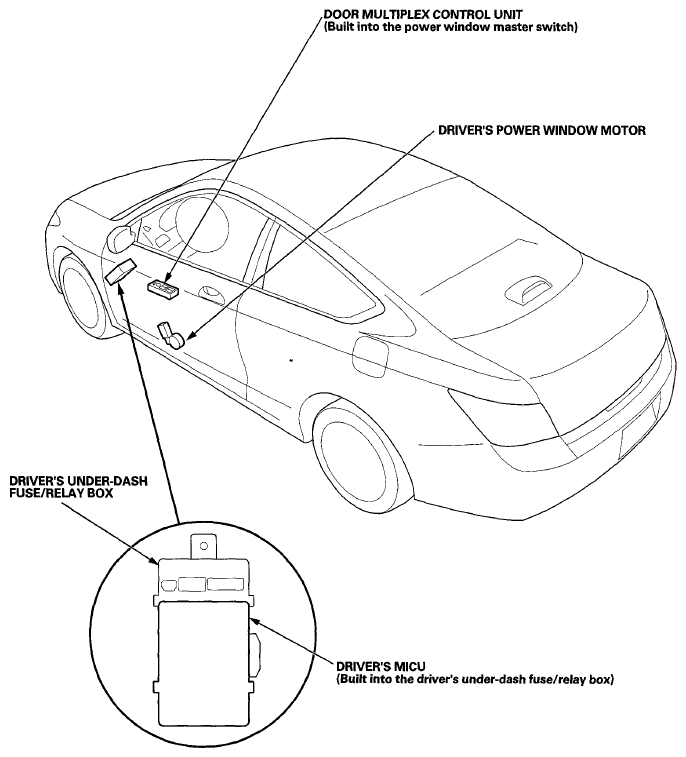

Fig 4: Identifying Power Windows Components Location (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
