Power Seat Control Unit (DPMS) (View 318)
Power Seat Control Unit (DPMS) (View 318)
GRY
Under Driver's Seat
On Driver's Seat Wire Harness
Connector A

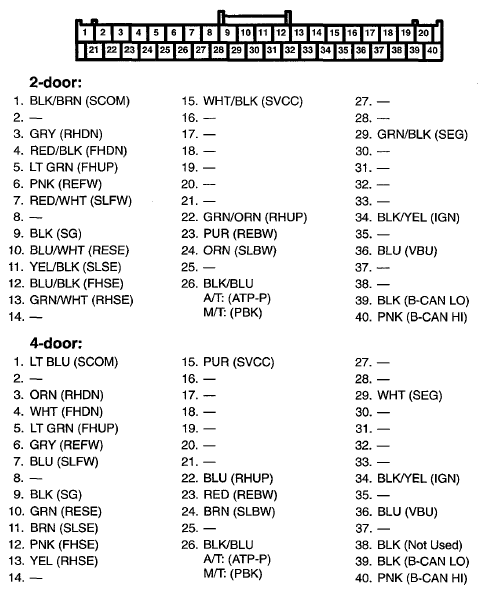

Fig 1: Power Seat Control Unit (DPMS) Connector A Terminal (View 318)
Connector B

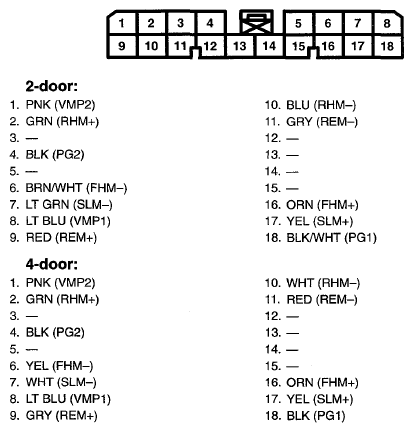

Fig 2: Power Seat Control Unit (DPMS) Connector B Terminal (View 318)
