Relays And Control Unit Locations: Door

Driver's Door

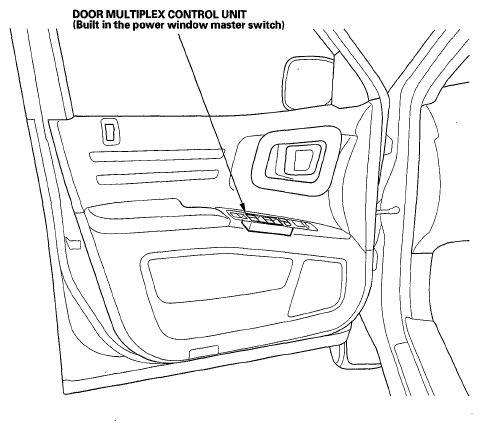

Fig 1: Identifying Driver's Door Relay And Control Unit Locations

G05968589

Courtesy of AMERICAN HONDA MOTOR CO., INC.
