VSA cannot be turned OFF
NOTE:
If the TPMS indicator turns ON, the VSA cannot be turned OFF. Troubleshoot TPMS first.
- Turn the ignition switch to LOCK (0).
- Check the VSA OFF switch (see VSA OFF SWITCH TEST/REPLACEMENT ).
Is the VSA OFF switch OK?
YES -Go to step 3.
NO -Replace the VSA OFF switch (see VSA OFF SWITCH TEST ). ■
- Disconnect the VSA OFF switch 5P connector (except Canada models with ACC) or VSA OFF switch 13P connector (Canada models with ACC).
- Disconnect gauge control module connector B (14P) (see GAUGE CONTROL MODULE REPLACEMENT ).

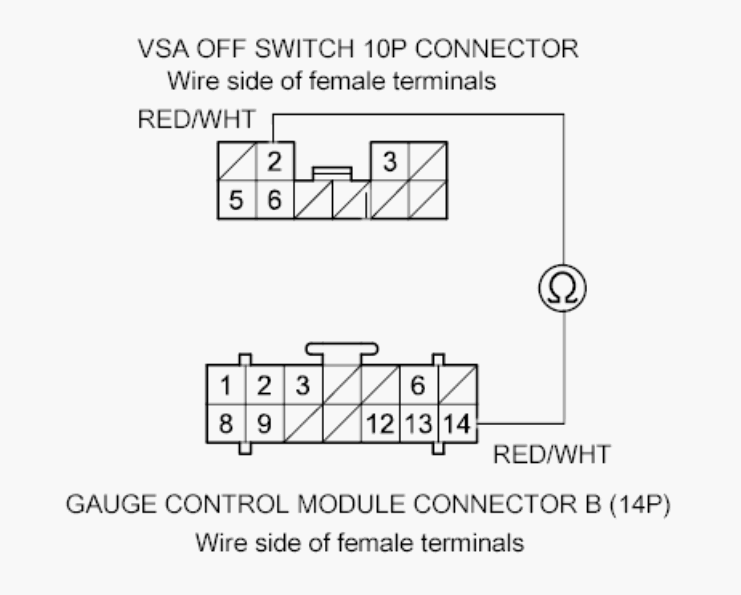

- Check for continuity between gauge control module connector B (14P) terminals No. 14 and VSA OFF switch 10P connector terminal No. 2.Fig 1: Checking Continuity Between Gauge Control Module Connector B (14P) Terminals No. 14 And VSA Off Switch 10P Connector Terminal No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 6.
NO -Repair an open in the wire between the gauge control module and the VSA OFF switch.

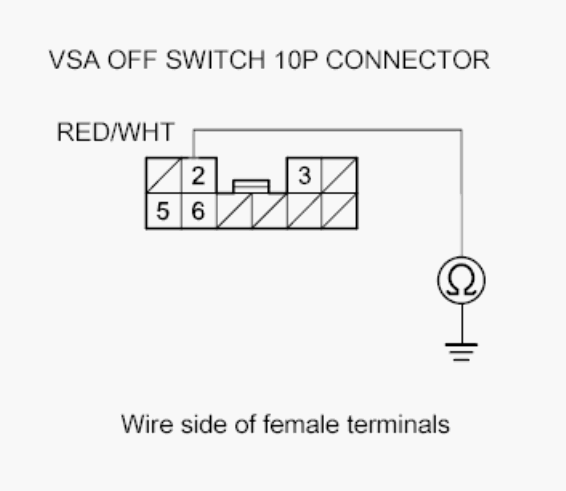

- Check for continuity between VSA OFF switch 10P connector terminal No. 2 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Repair an open in the wire between the gauge control module and the VSA OFF switch.
NO -Go to step 7.

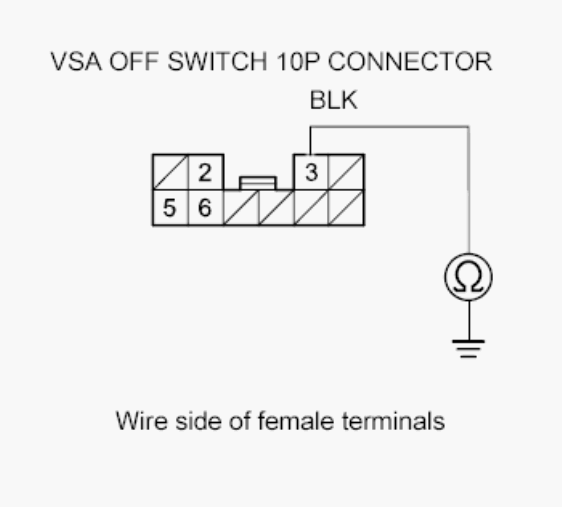

- Check for continuity between VSA OFF switch 10P connector terminal No. 3 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Substitute a known-good gauge control module, than go to step 1 and recheck. If it is OK, replace the original gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
NO -Repair an open in the wire between the VSA OFF switch and body ground (G401).
