Brake Pedal Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Disconnect the brake pedal position switch connector (A).

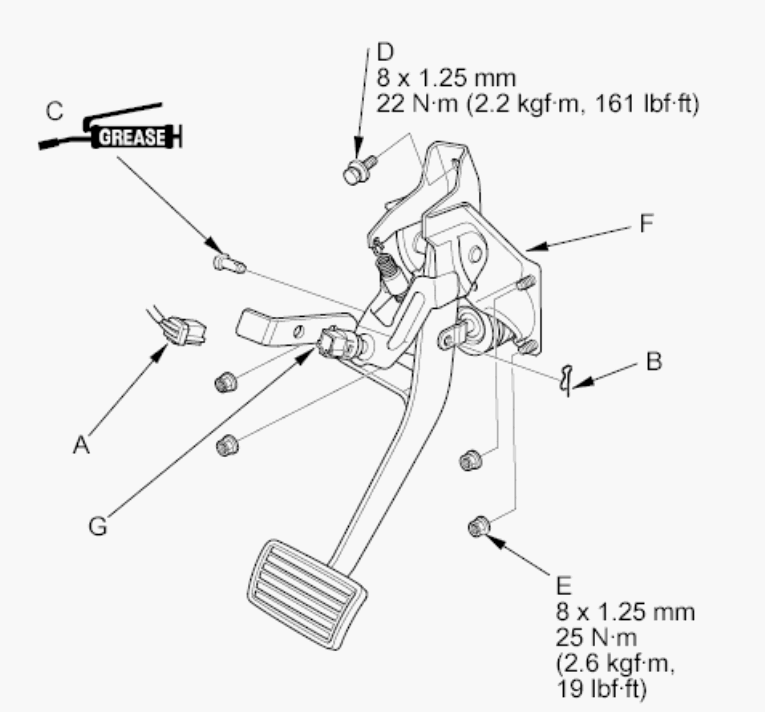

    Fig 1: Brake Pedal Position Switch Connector, Lock Pin And Joint Pin With Torque Specifications
    G00510923Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the lock pin (B) and joint pin (C).
  4. Remove the brake pedal bracket mounting bolt (D) and nuts (E).
  5. Remove the brake pedal with bracket (F).
  6. Remove the brake pedal position switch (G) by turning it 45° counterclockwise.
  7. Install in the reverse order of removal.
  8. Do the brake pedal and brake pedal position switch adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT ).
