System Evacuation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.
Be careful when connecting service equipment.
Do not breathe refrigerant or vapor.

NOTE:

If accidental system discharge occurs, ventilate the work area before resuming service.
Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.
Do not allow moisture to contaminate the A/C system oil. Moisture in the oil is difficult to remove, and it can damage the A/C compressor.
Using a thermistor vacuum gauge may decrease the required evacuation time because you can measure actual moisture level with this tool.

A more efficient way to measure moisture removal is with a special tool called a thermistor vacuum gauge, measuring vacuum levels in microns.

Connect the tool according to the manufacturers instructions, and allow the vacuum pump to run until the gauge reads 500 microns.

Shut off and isolate the vacuum pump, then observe the gauge reading:

If the vacuum level remains stable for at least 3 minutes, all moisture in the system has been removed.
A slow increase in the micron reading means there is still moisture boiling out of the system. Restart the vacuum pump and continue evacuating.
A quick increase of micron levels indicates a leak is present in the system or your service equipment. Determine the cause and correct the leak before continuing.

When an A/C system has been opened to the atmosphere, such as during installation or repair, it must be evacuated using an R-134a refrigerant recovery/recycling/charging station. If the system has been open for several days, the receiver/dryer should be replaced, refrigerant oil should be drained and replaced with new oil, and the system should be evacuated for several hours.

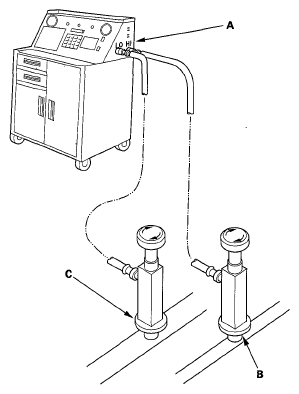

Connect an R-134a refrigerant recovery/recycling/charging station (A) to the high-pressure service port (B) and the low-pressure service port (C), as shown, following the equipment manufacturer's instructions. Recover the refrigerant, if any, from the A/C system (see REFRIGERANT RECOVERY ).

Fig 1: Connect R-134a Refrigerant Recovery/Recycling/Charging Station To High-Pressure Service Port
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Evacuate the system. The vacuum pump should run for a minimum of 45 minutes to eliminate all moisture from the system. When the suction gauge reads -93.3 kPa (-700 mmHg, -27.6 in.Hg) for at least 45 minutes, close all valves, and turn off the vacuum pump.
If the suction gauge does not reach approximately -93.3 kPa (-700 mmHg, -27.6 in.Hg) in 15 minutes, there is probably a leak in the system. Partially charge the system, and check for leaks (see REFRIGERANT LEAK CHECK ).
