Expansion Valve Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a recovery/recycling/charging station (see REFRIGERANT RECOVERY ).
  2. Disconnect the suction line and receiver line from the evaporator core (see step 2 on BLOWER UNIT COMPONENT REPLACEMENT ).
  3. Remove the blower unit (see BLOWER UNIT REMOVAL/INSTALLATION ).
  4. Remove the joint duct (see step 4 on BLOWER UNIT COMPONENT REPLACEMENT ).
  5. Remove the bolts, inlet and outlet pipes (A), and expansion valve (B).

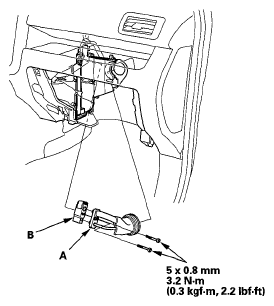

    Fig 1: Inlet/Outlet Pipes And Expansion Valve With Torque Specifications
    G05968454Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the expansion valve in the reverse order of removal, and note these items:
    • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
    • Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
    • Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
    • Make sure that there is no air leakage.
    • Charge the system (see SYSTEM CHARGING ).
