Circuit Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

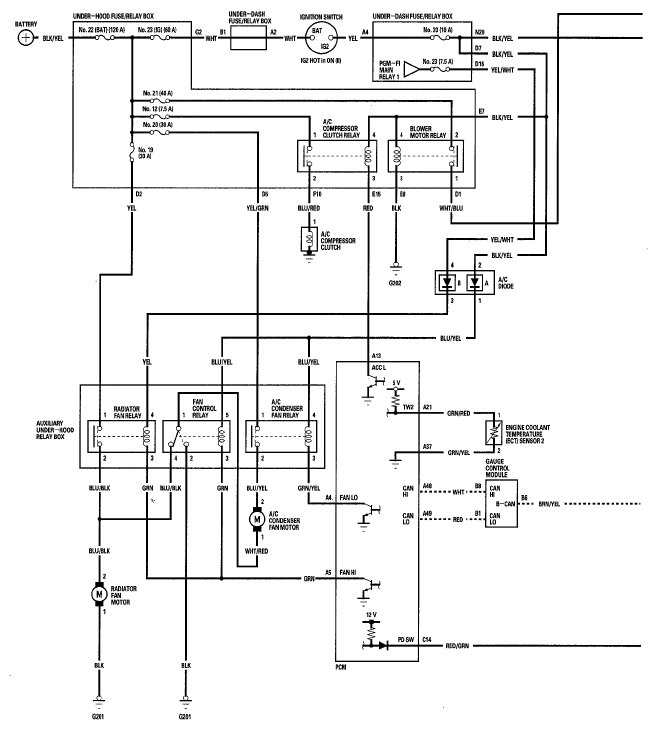

Fig 1: Heating And Air Conditioning - Circuit Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

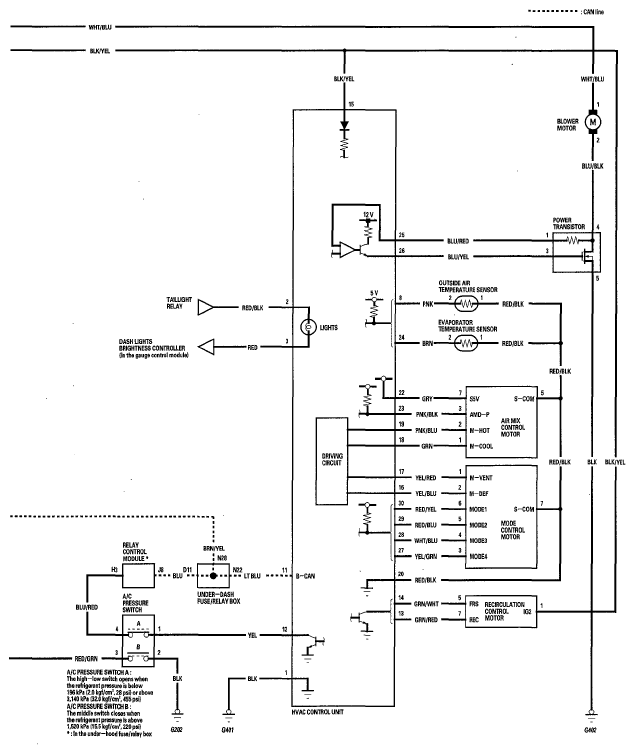

Fig 2: Heating And Air Conditioning - Circuit Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

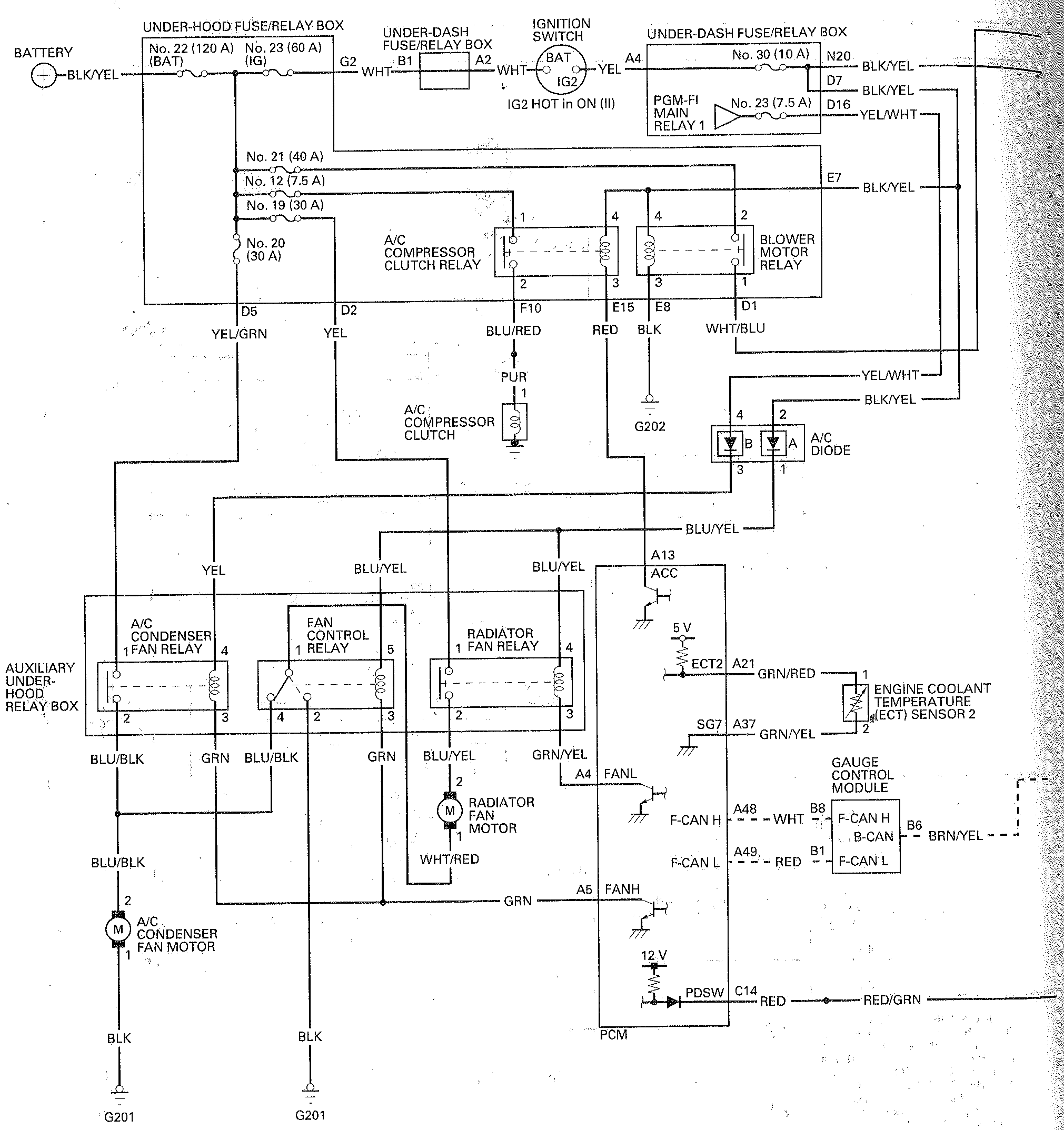

Fig 3: Heating And Air Conditioning - Circuit Diagram (1 Of 2) '12 Model

Courtesy of AMERICAN HONDA MOTOR CO., INC.

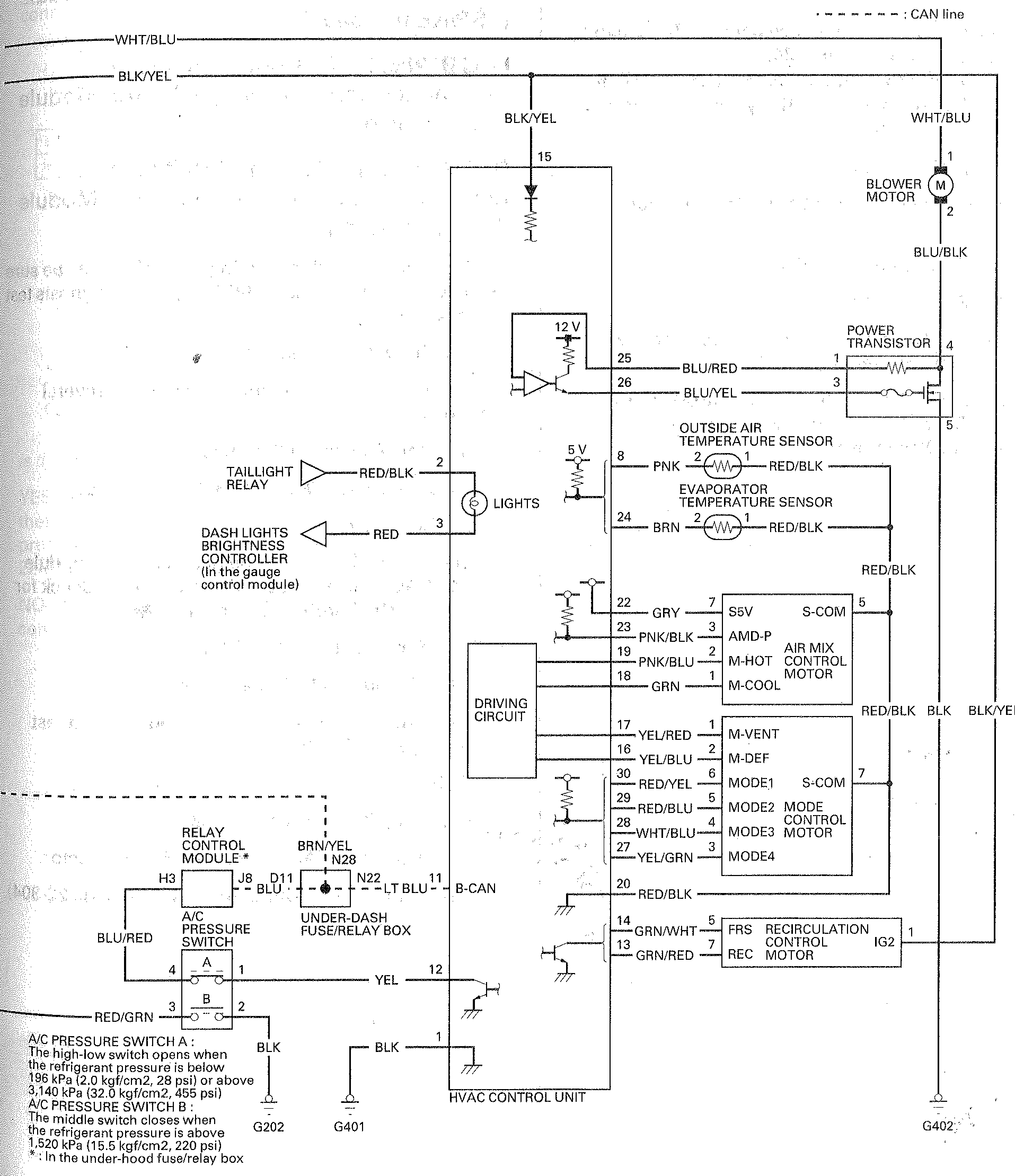

Fig 4: Heating And Air Conditioning - Circuit Diagram (2 Of 2) '12 Model

Courtesy of AMERICAN HONDA MOTOR CO., INC.
