PCM Circuit Diagram

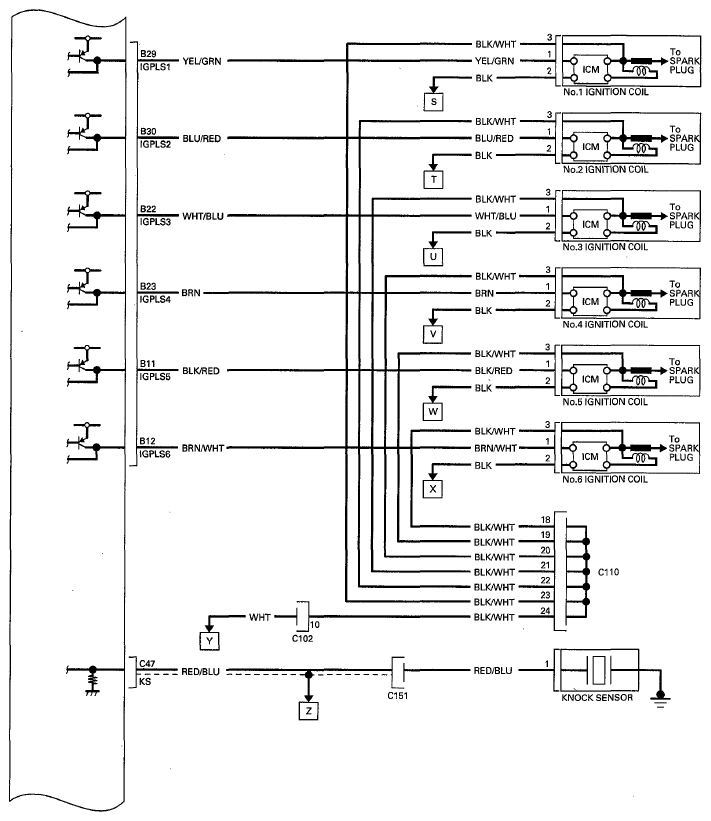

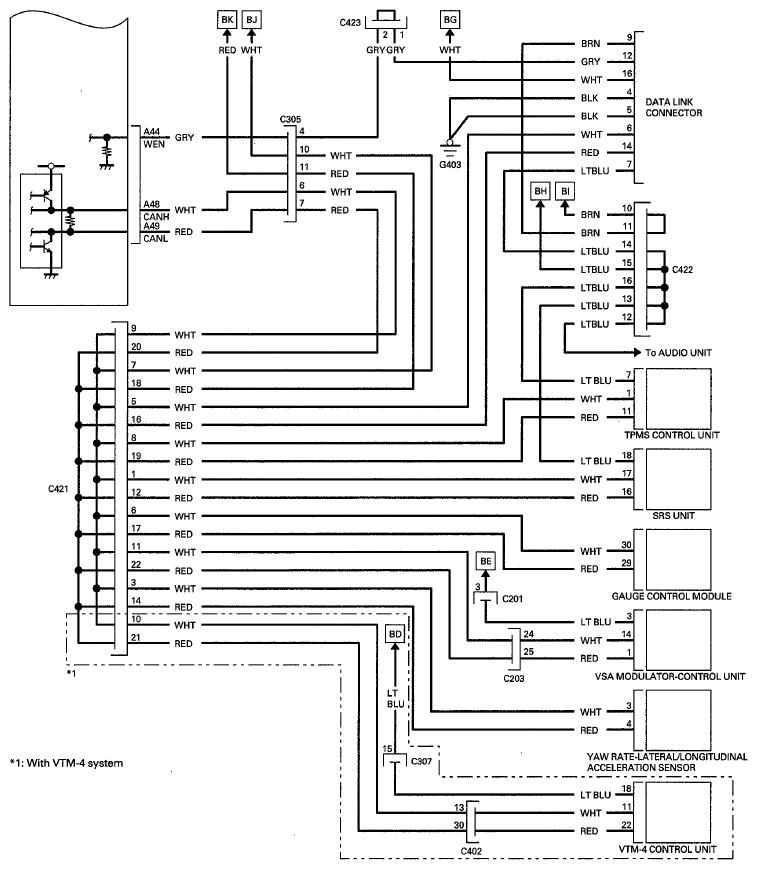

Fig 1: Identifying PCM Circuit Diagram (1 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

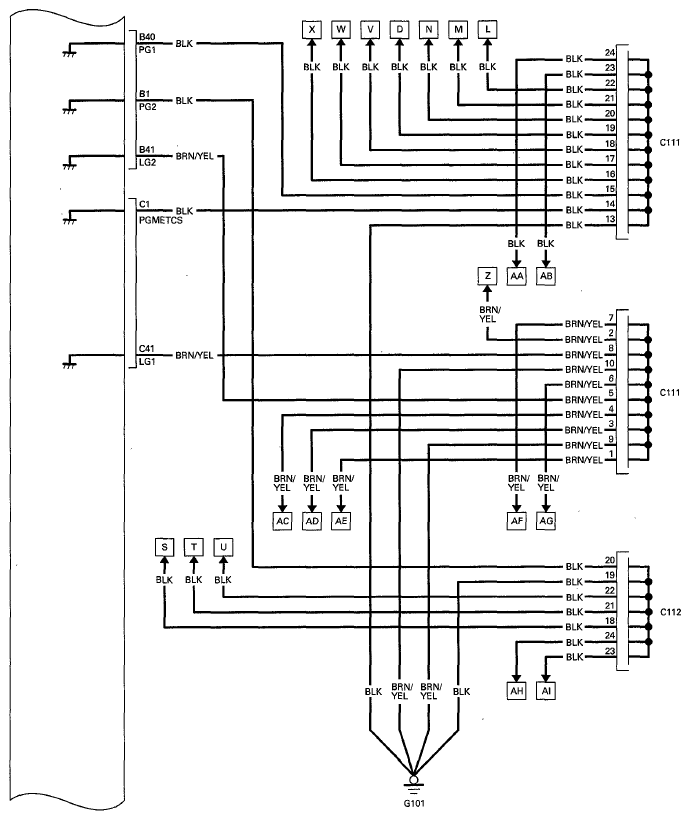

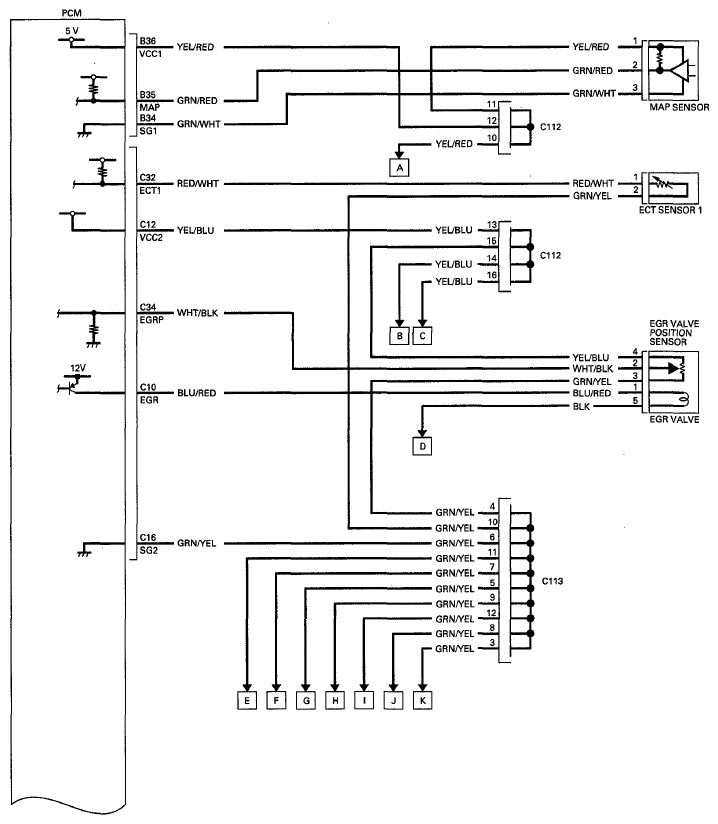

Fig 2: Identifying PCM Circuit Diagram (2 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

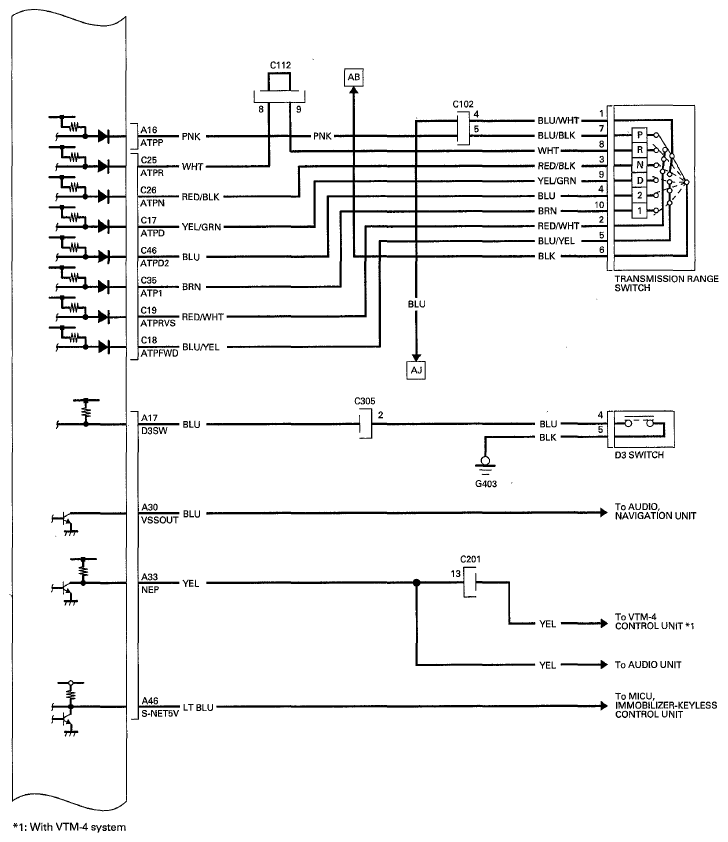

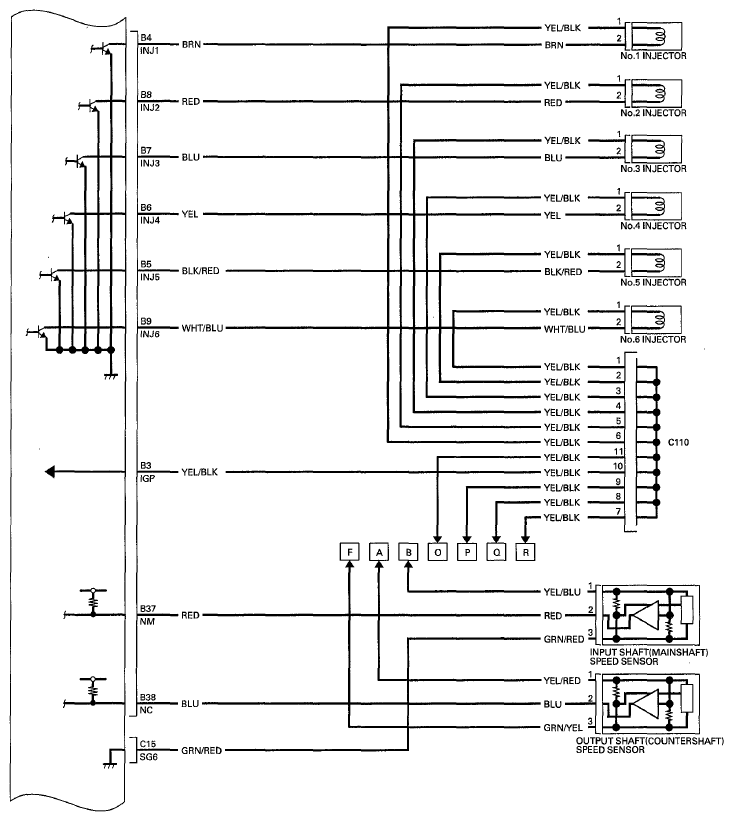

Fig 3: Identifying PCM Circuit Diagram (3 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

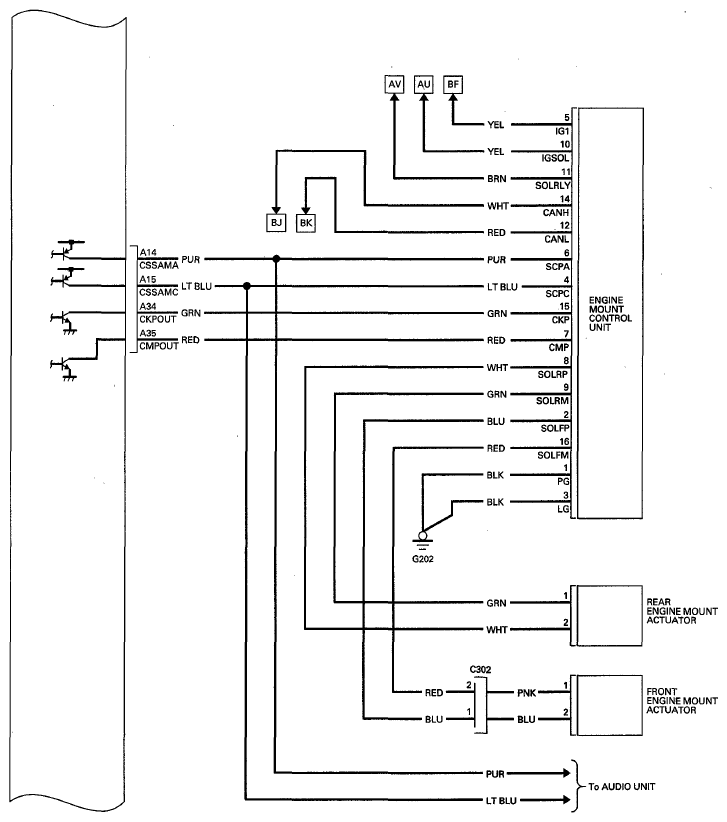

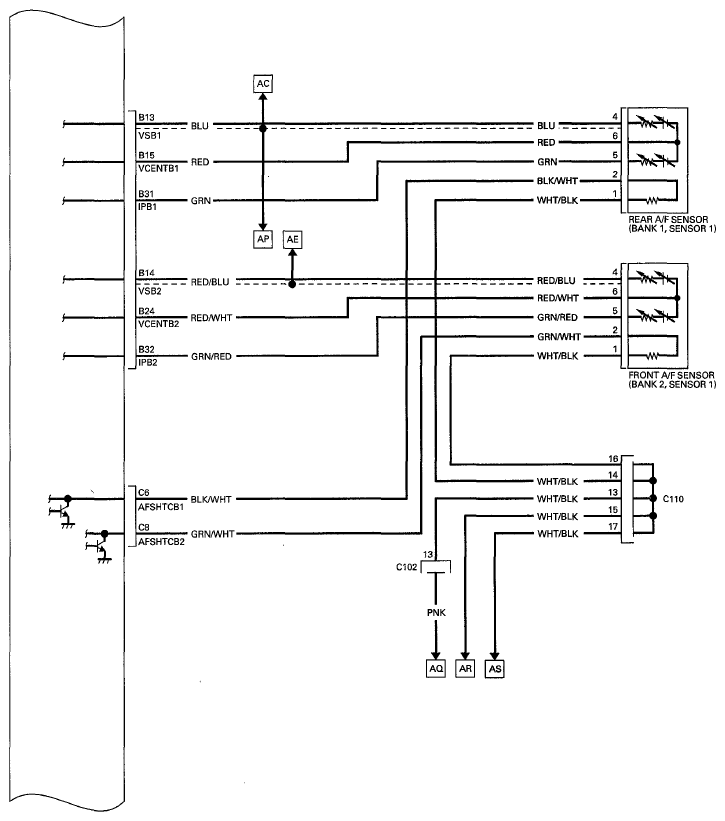

Fig 4: Identifying PCM Circuit Diagram (4 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

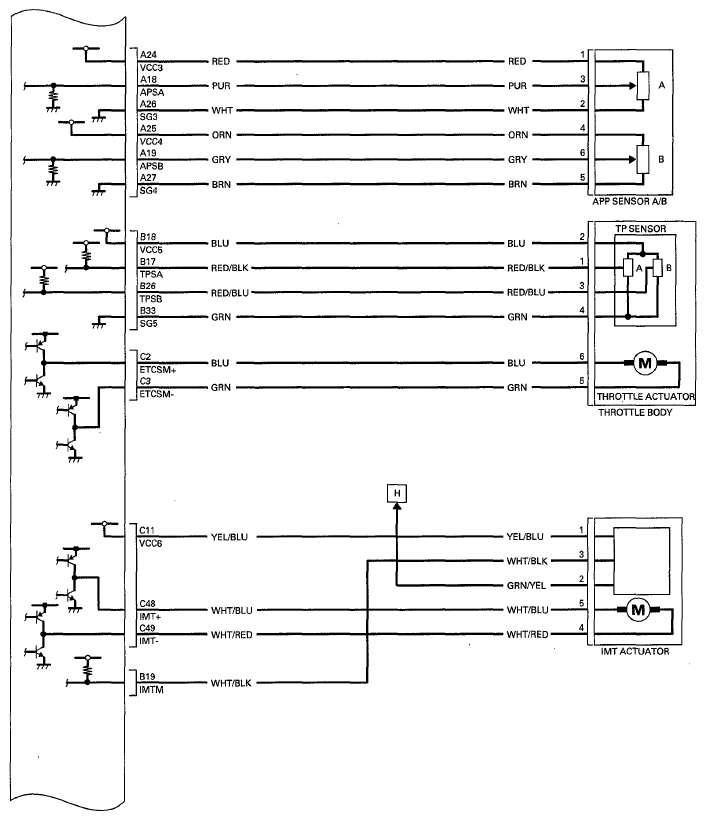

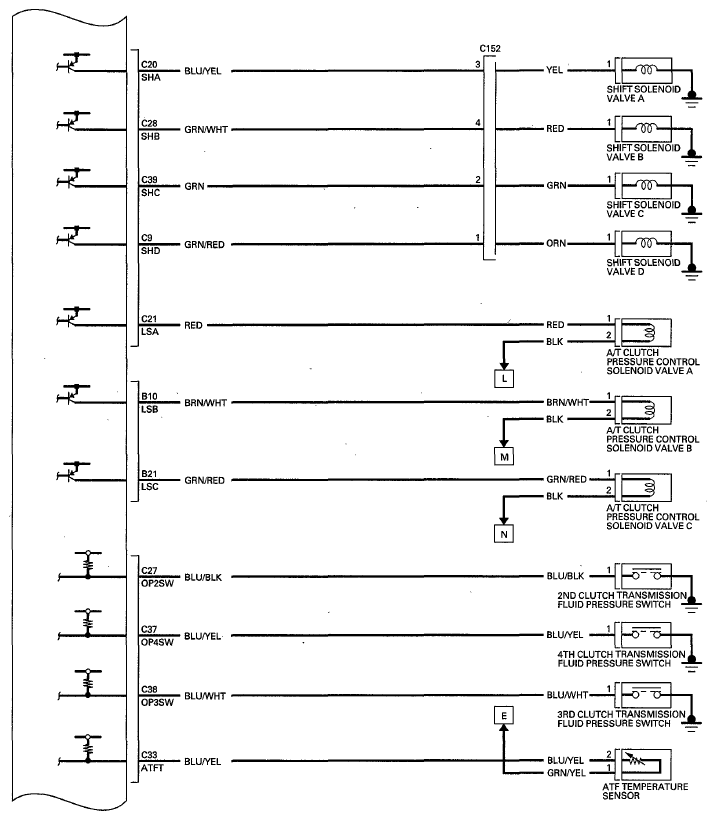

Fig 5: Identifying PCM Circuit Diagram (5 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

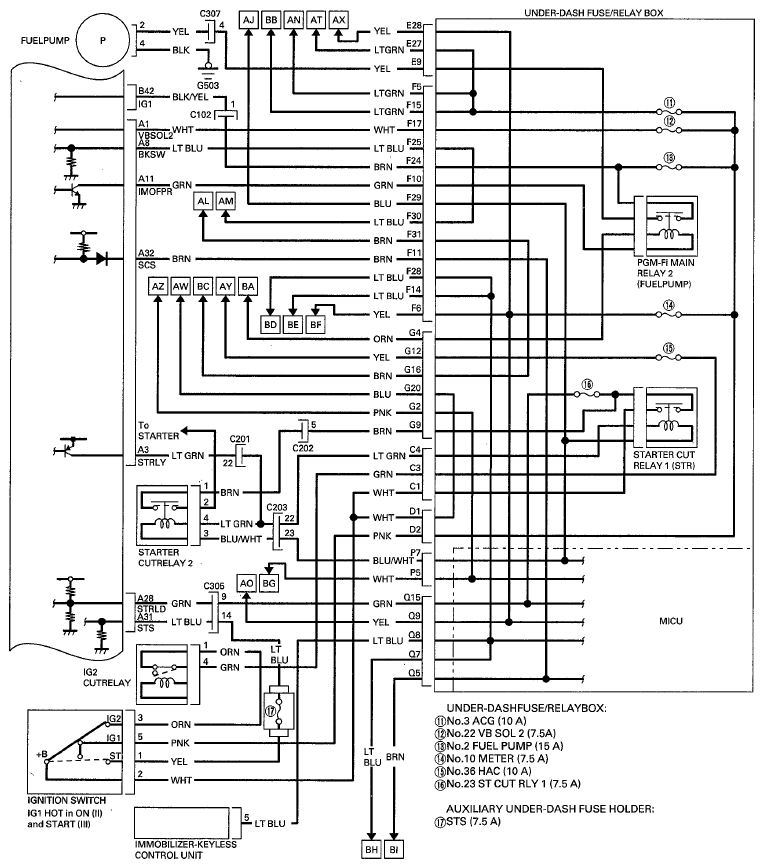

Fig 6: Identifying PCM Circuit Diagram (6 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

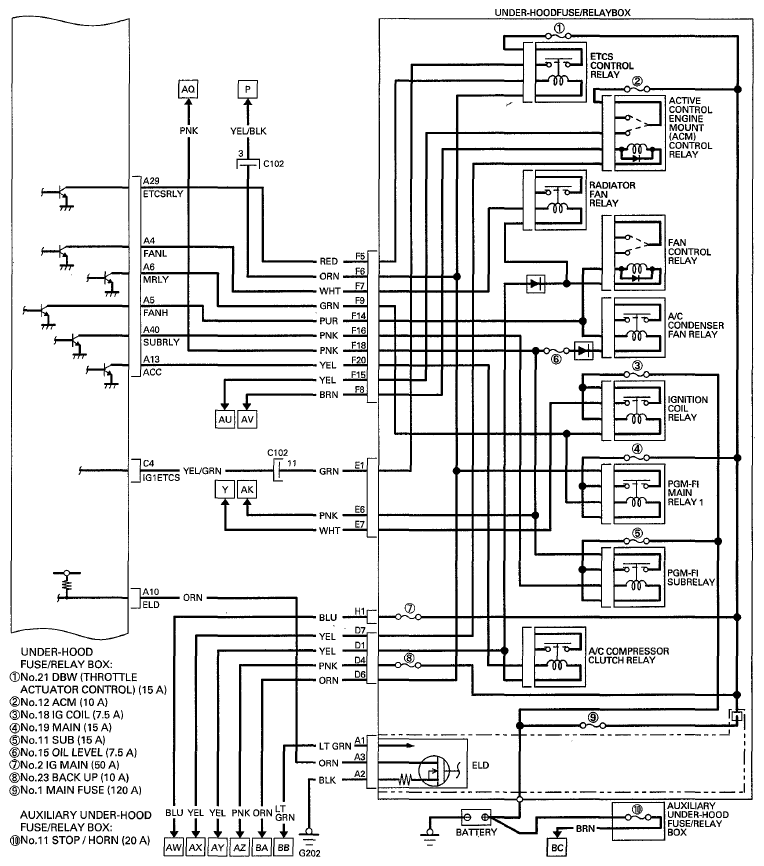

Fig 7: Identifying PCM Circuit Diagram (7 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

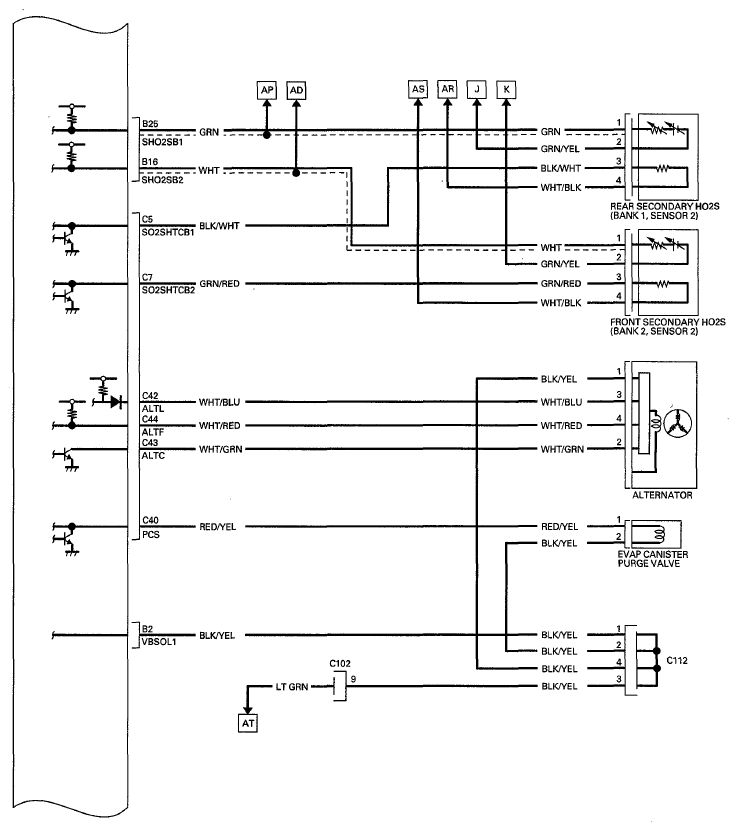

Fig 8: Identifying PCM Circuit Diagram (8 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Identifying PCM Circuit Diagram (9 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Identifying PCM Circuit Diagram (10 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Identifying PCM Circuit Diagram (11 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Identifying PCM Circuit Diagram (12 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Identifying PCM Circuit Diagram (13 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Identifying PCM Circuit Diagram (14 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Identifying PCM Circuit Diagram (15 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Identifying PCM Circuit Diagram (16 Of 16)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
