Active Control Engine Mount (ACM) System
>>
Circuit Diagram
Circuit Diagram

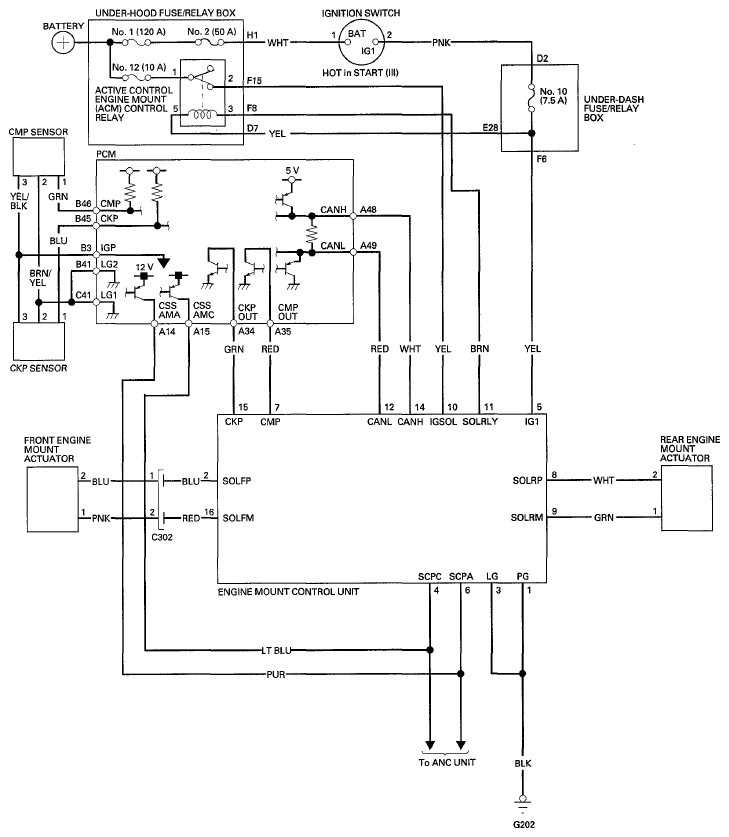

Fig 1: Identifying Active Control Engine Mount (ACM) System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
