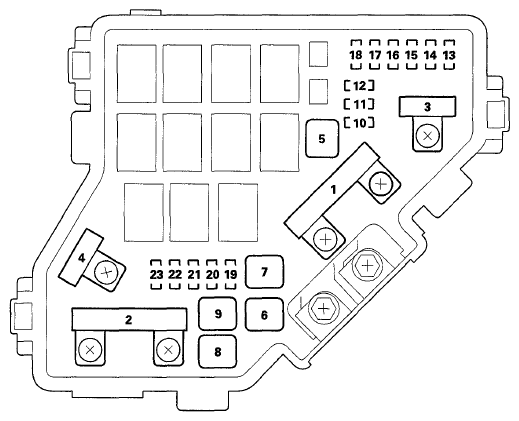

| 1 |
120 A (MAIN) |
Battery, Power distribution |
| - |
Not used |
| 2 |
50A (IG) |
Ignition switch (BAT), No. 23 fuse (in the under-dash fuse/relay box) (via starter cut relay 1), Starter solenoid (via starter cut relay 1,2) |
| 80 A (OPTION) |
No. 5, No. 6, No. 7, No. 27, No. 28, No. 29, and No. 31 fuses (in the under-dash fuse/relay box) |
| 3 |
- |
Not used |
| - |
Not used |
| 4 |
50 A (H/L) |
No. 18 through No. 21 fuses (in the under-dash fuse/relay box) |
| 40 A (P/W) |
No. 24, No. 25, No. 26, and No. 30 fuses (in the under-dash fuse/relay box). No. 32 and No. 33 fuses (in the under-dash fuse/relay box) (via power window relay), Power window relay |
| 5 |
- |
Not used |
| 6 |
30 A |
A/C condenser fan motor (via A/C condenser fan relay) |
| 7 |
30 A |
Radiator fan motor (via radiator fan relay) |
| 8 |
30 A |
Rear window defogger (via rear window defogger relay) |
| 9 |
40 A |
Front blower motor (via front blower motor relay) |
| 10 |
20 A |
Fog light relay. Fog lights (via fog light relay) |
| 11 |
15A |
Front A/F sensor (Bank 2, Sensor 1), Front secondary HO2S (Bank 2, Sensor 2), No. 15 fuse (in the under-hood fuse/relay box) (via PGM-FI subrelay), PGM-FI subrelay. Rear A/F sensor (Bank 1, Sensor 1), Rear secondary HO2S (Bank 1, Sensor 2) |
| 12 |
10 A |
Engine mount control unit (IG SOL) (via active control engine mount (ACM) control relay) |
| 13 |
20 A |
Front passenger's seat recline motor (via front passenger's power seat adjustment switch) |
| 14 |
20 A |
Front passenger's seat slide motor (via front passenger's power seat adjustment switch) |
| 15 |
7.5 A |
A/C condenser fan relay (via diode) |
| 16 |
20 A |
Headlight high relay, Headlights (high beam) (via headlight high relay) |
| 17 |
20 A |
Audio unit (+B), HFL/navigation/ANC microphone (+B) (Touring) |
| 18 |
15 A |
Ignition coil relay. Ignition coils (via ignition coil relay) |
| 19 |
15A |
CKP sensor (via PGM-FI main relay 1), CMP sensor (via PGM-FI main relay 1), Electronic throttle control system (ETCS) control relay (via PGM-FI main relay 1), Injectors (via PGM-FI main relay 1), MAF sensor (via PGM-FI main relay 1), PCM (IGP) (via PGM-FI main relay 1), PGM-FI main relay 1, PGM-FI main relay 2 (FUEL PUMP) (via PGM-FI main relay 1) |
| 20 |
7.5 A |
A/C compressor clutch (via A/C compressor clutch) |
| 21 |
15A |
PCM (IG1ETCS) (via electronic throttle control system (ETCS) control relay) |
| 22 |
10 A |
Cargo area light. Driver's door courtesy light, Driver's vanity mirror light, Front individual map lights. Front passenger's door courtesy light, HomeLink unit, Ignition key light, Inside tailgate switch light. Left rear door courtesy light. Passenger's vanity mirror light. Rear individual map lights (2nd), Rear individual map lights (3rd), Right rear door courtesy light Optional connector (left running board light). Optional connector (right running board light) |
| 23 |
10 A |
Audio-HVAC display unit (+B), Data link connector (DLC), Gauge control module (+BAT), HandsFreeLink control unit (+B), Power mirror control unit (+B MIRROR), Power seat control unit (VBU), Power tailgate control unit (VBU), Power window master switch (VBU), Rear controller and screen (+B), Navigation display unit (+B) |
