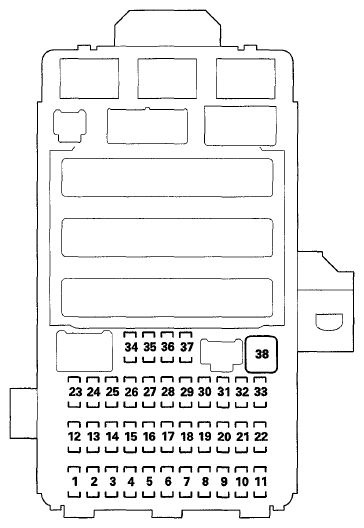

| 1 |
7.5 A |
VTM-4 control unit (IG1), VTM-4 relay |
| 2 |
15A |
Fuel pump (via PGM-FI main relay 2 (FUEL PUMP)), Immobilizer-keyless control unit (IG1), PCM (IG1) |
| 3 |
10A |
Alternator, Electrical load detector (ELD), EVAP canister purge valve, PCM (BKSWNC) (via brake pedal position switch), PCM (VBSOL1) |
| 4 |
7.5 A |
VSA modulator-control unit (IG1), Yaw rate-lateral/longitudinal acceleration sensor |
| 5 |
15A |
Front passenger's seat heater cushion (via front passenger's seat heater relay (HIGH)), Front passenger's seat heater cushion (via front passenger's seat heater relay (LOW)), Driver's seat heater cushion (via driver's seat heater relay (HIGH)), Driver's seat heater cushion (via driver's seat heater relay (LOW)) |
| 6 |
- |
Not used |
| 7 |
10A |
Automatic lighting control unit (+B), Driver's lumbar support motor (via driver's lumbar support switch) |
| 8 |
7.5 A |
Automatic lighting control unit (IG), Parking and back-up control unit (IG), Parking and back-up control unit (MAIN SW) (via parking and back-up sensor switch). Parking and back-up sensor switch indicator (via parking and back-up sensor switch), TPMS control unit (IG1) |
| 9 |
7.5 A |
ODS unit. Passenger's airbag CUT OFF indicator, SRS unit (VA) |
| 10 |
7.5 A |
Active control engine mount (ACM) control relay, Automatic dimming insdie mirror (via MICU) or Automatic dimming inside mirror/rear view monitor mirror (via MICU), Electrical compass unit (IG1) (except Touring), Engine mount control unit (IG1), Gauge control module (IGN), Left back-up light, MICU (IG1 METER), Power mirror control unit (IG1), Power seat control unit (IG1), Power seat control unit (IG1) Power tailgate control unit (IGN1), Right back-up light, Shift lock soleniod, Trailer lighting unit*9, VTM-4 control unit (LCKSW) (via VTM-4 lock switch), VTM-4 control unit (LCKSW) (via VTM-4 lock switch), VTM-4 lock switch indicator |
| 11 |
10A |
SRS unit (VB) |
| 12 |
10A |
Right daytime running light |
| 13 |
10A |
Left daytime running light |
| 14 |
7.5 A |
Audio unit light, Audio remote switch light (via cable reel), Audio-HVAC display unit light, Ambient light (console), Ambient light (pocket), Ambient light (roof), A/T gear position indicator panel light, Climate control unit light or HVAC control unit light, Glove box light, Cruise control combination switch light, Console box light, Hazard warning switch light, Moonroof switch light, Multi-information switch lights (via cable reel)*4, Navigation control panel light (Touring), Optional connector, Parking and back-up sensor switch light, Rear controller and screen light*2, Rear HVAC control panel light or Rear climate control panel light, RES auxiliary jack assembly light, Seat heater switches light, VSA OFF switch light, VTM-4 lock switch light*5 |
| 15A |
10A |
License plate lights, Left front parking light, Left front side marker light, Left rear side marker light, Left taillights, Right front parking light, Right front side marker light, Right rear side marker light, Right taillights, Trailer lighting relay*9 |
| 16 |
15A |
Right headlight (low beam) |
| 17 |
15A |
Left headlight (low beam) |
| 18 |
20 A |
MICU (+ BDRL MAIN) |
| 19 |
15A |
MICU (+B SMALL LT MAIN) |
| 20 |
7.5 A |
TPMS control unit (+B) |
| 21 |
20 A |
MICU (+ BH/LLO MAIN) |
| 22 |
7.5 A |
PCM (VBSOL2) |
| 23 |
7.5 A |
PCM (STRLD) |
| 24 |
- |
Not used |
| 25 |
- |
Not used |
| 26 |
20 A |
Power window master switch (+B P/W DR) |
| 27 |
20 A |
Optional connector |
| 28 |
20 A |
Moonroof control unit/motor (VMP) |
| 29 |
20 A |
MICU (+B DOOR LOCK) |
| 30 |
20 A |
Front passenger's power window switch (+B P/W AS) |
| 31 |
30 A |
Stereo amplifier (+B MAIN), Stereo amplifier (+B SUB) |
| 32 |
20 A |
Right rear power window switch (+B P/W RR R) |
| 33 |
20 A |
Left rear power window switch (+B P/W RR L) |
| 34 |
- |
Not used |
| 35 |
10A |
Audio unit (ACC), Cargo area accessory power socket relay, Console accessory power socket relay A, Console accessory power socket relay B, Front accessory power socket relay, HandsFreeLink control unit (ACC) (Touring), HFL/navigation/ANC microphone (ACC) (Touring), Key interlock solenoid, MICU (ACC), Navigation display unit (ACC) |
| 36 |
10A |
AC inverter unit (IG2), A/C compressor clutch relay, Automatic dimming inside mirror or Automatic dimming inside mirror/rearview monitor mirror, Audio-HVAC display unit (IG2) (except Touring), Climate control unit (IG2) or HVAC control unit (IG2), Driver's seat heater indicators, Driver's seat heater relays (via driver's seat heater switch), Fan control relay (via diode), Front blower motor relay, Front passenger's seat heater relays (via front passenger's seat heater switch), Front passenger's seat heater indicators, Left power mirror actuator (via power mirror switch)*6, Left second row seat heater indicator*8, Left second row seat heater relays (via left second row seat heater switch)*8, Optional connector, Power window master switch (IG2), Power mirror control unit (via power mirror switch)*1, Power window master switch (UD) (via power mirror switch)*6, Radiator fan relay (via diode), Right second row seat heater indicator*8, Right second row seat heater relays (via right second row seat heater switch)*8, Rear blower motor relay, Rear climate control panel (IG2) or rear HVAC control panel (IG2), Rear window defogger relay, Rear mode control motor, Trailer IG2 relay*9 |
| 37 |
7.5 A |
MICU (IG2 DAY LT) |
| 38 |
30 A |
MICU (IG1 WIPER), Rear window washer motor (via MICU), Windshield washer motor (via MICU), Windshield wiper motor (via MICU) |
