Pilot EX, 3.5 4
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
VSA Modulator-Control Unit (View 354)
VSA Modulator-Control Unit (View 354)
BLK
Left Side of Engine Compartment
On Left Engine Compartment Wire Harness

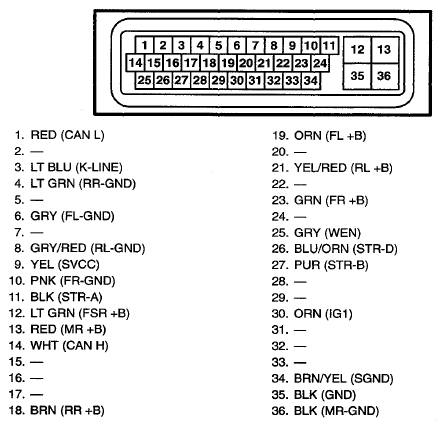

Fig 1: VSA Modulator-Control Unit Connector Terminal (View 354)
