Honda
>>
2011
>>
Pilot EX, 3.5 4
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
Transmission Range Switch (View 286)
Transmission Range Switch (View 286)
BLK/GRY
Transmission Housing
On Engine Wire Harness

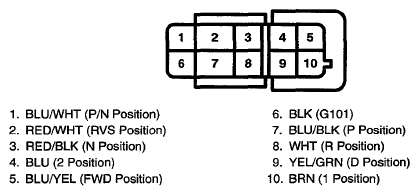

Fig 1: Transmission Range Switch Connector Terminal (View 286)
