OEM Connector End Views
>>
Connector End Views
>>
Right Front TPMS Initiator (TPMS) (View 164)
Right Front TPMS Initiator (TPMS) (View 164)
BLK
Behind Right Side of Front Bumper
On Right Engine Compartment Wire Harness

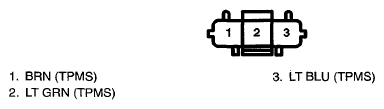

Fig 1: Right Front TPMS Initiator (TPMS) Connector Terminal (View 164)
