Rear Fuse/Relay Box (View 374)

BLK
Left Side of Cargo Area
On Floor Wire Harness

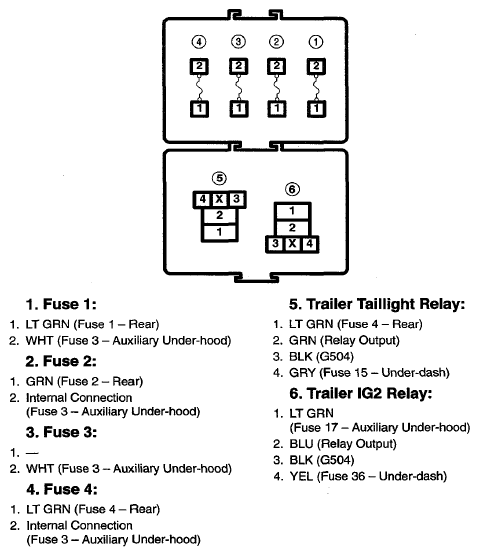

Fig 1: Rear Fuse/Relay Box Connector Terminal (View 374)

G07763283
