Rear Climate Control Panel (Climate Control) (View 294)
Rear Climate Control Panel (Climate Control) (View 294)
GRY
Rear of Center Console
On Rear A/C Panel Wire Harness

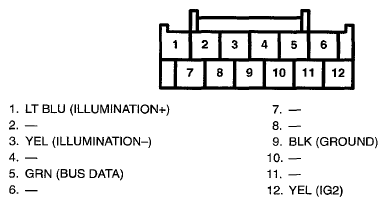

Fig 1: Rear Climate Control Panel (Climate Control) Connector Terminal (View 294)
