Power Window Master Switch (View 356)

GRY
Driver's Door
On Driver's Door Wire Harness

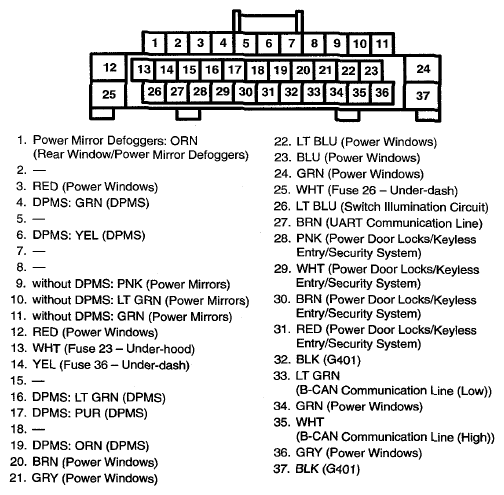

Fig 1: Power Window Master Switch Connector Terminal (View 356)

G07763241
