Power Mirror Switch (View 306)

WHT
Driver's Door
On Driver's Door Wire Harness

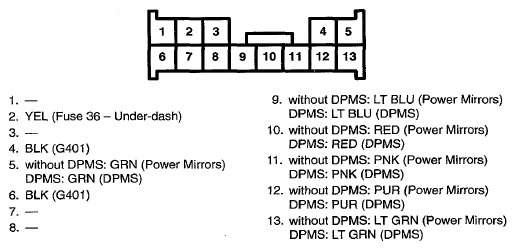

Fig 1: Power Mirror Switch Connector Terminal (View 306)

G07763183
