PSP Switch (View 96)

BLK
Right Rear of Engine Compartment
On Right Engine Compartment Wire Harness

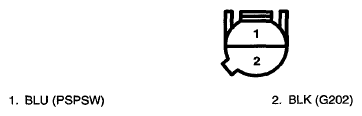

Fig 1: PSP Switch Connector Terminal (View 96)

G07762970
