PCM (View 370)

Right Side of Engine Compartment
Connector A
- BLK/WHT
- On Right Engine Compartment Wire Harness

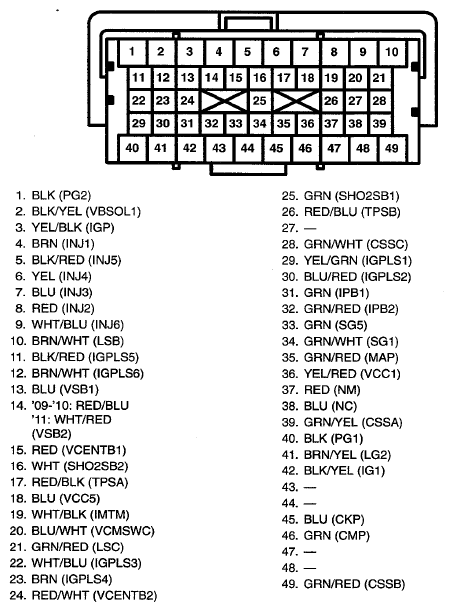

  Fig 1: PCM Connector A Terminal (View 370)
Connector B
- BLK/GRY
- On Engine Wire Harness

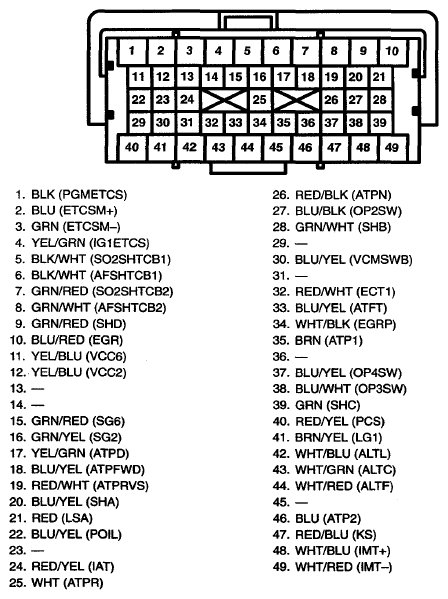

Fig 2: PCM Connector B Terminal (View 370)

Connector C
- BLK/GRN
- On Engine Wire Harness

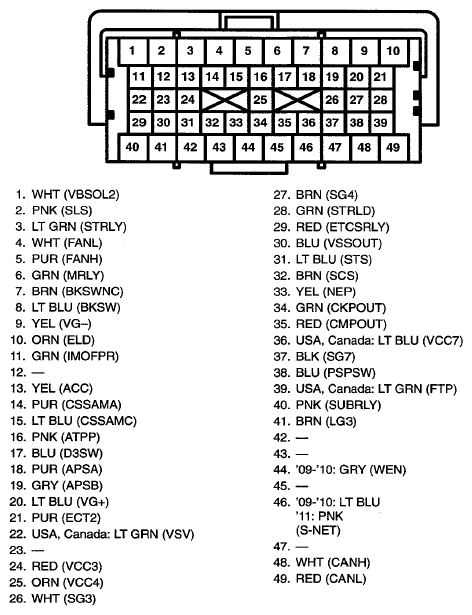

Fig 3: PCM Connector C Terminal (View 370)
