Outside Air Temperature Sensor (View 90)

BLK
Behind Left Side of Front Bumper
On Left Engine Compartment Wire Harness

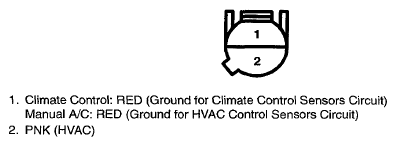

Fig 1: Outside Air Temperature Sensor Connector Terminal (View 90)

G07762964
