Multi-Information Switch (Multi-Information Switch) (View 216)
Multi-Information Switch (Multi-Information Switch) (View 216)
LT BLU
Steering Wheel
On Cable Reel Sub-harness

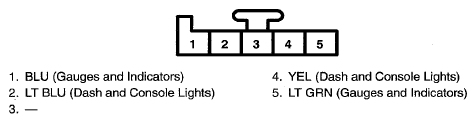

Fig 1: Multi-Information Switch (Multi-Information Switch) Connector Terminal (View 216)
