Pilot EX, 3.5 4
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
MAF/IAT Sensor (View 215)
MAF/IAT Sensor (View 215)
BLK
Left Side of Engine Compartment
On Engine Wire Harness

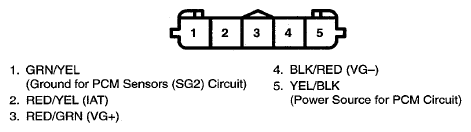

Fig 1: MAF/IAT Sensor Connector Terminal (View 215)
