Pilot EX, 3.5 4
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
Left Taillight Assembly (View 214)
Left Taillight Assembly (View 214)
GRY
Behind Left Taillight Assembly
On Rear Wire Harness

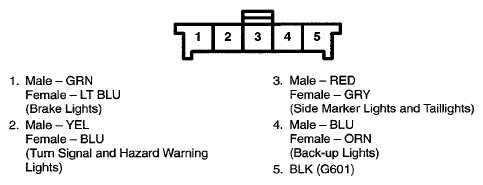

Fig 1: Left Taillight Assembly Connector Terminal (View 214)
