Left Rear Power Window Switch (View 311)
Left Rear Power Window Switch (View 311)
GRY
Left Rear Door
On Left Rear Door Sub-harness

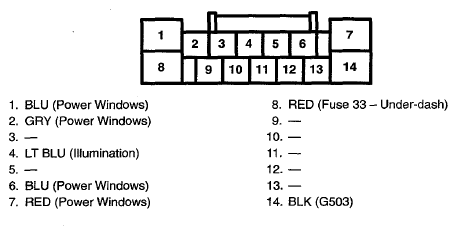

Fig 1: Left Rear Power Window Switch Connector Terminal (View 311)
