Left Power Mirror (View 320)

WHT
Driver's Door
On Driver's Door Wire Harness

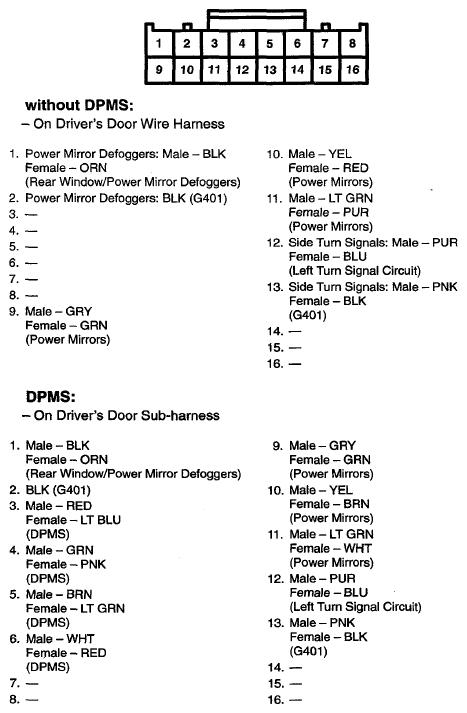

Fig 1: Left Power Mirror Connector Terminal (View 320)

G07763197
