Left Headlight (View 76)

Left Front of Engine Compartment
On Left Engine Compartment Wire Harness
Connector A
- BLK
Fig 1: Left Headlight Connector A Terminal (View 76)

Connector B
- BLU

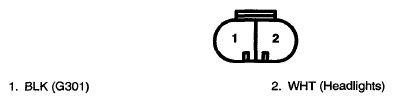

Fig 2: Left Headlight Connector B Terminal (View 76)
