Left Front Wheel Speed Sensor (View 75)

ORN
Under Left Front of Engine Compartment
On Left Engine Compartment Wire Harness

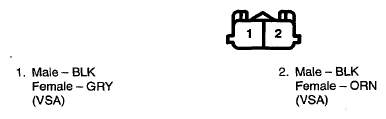

Fig 1: Left Front Wheel Speed Sensor Connector Terminal (View 75)

G07762948
