Left Front TPMS Initiator (TPMS) (View 156)
Left Front TPMS Initiator (TPMS) (View 156)
BLK
Behind Left Side of Front Bumper
On Left Engine Compartment Wire Harness

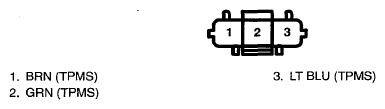

Fig 1: Left Front TPMS Initiator (TPMS) Connector Terminal (View 156)
