Left DRL (View 71)

WHT
Left Front of Engine Compartment
On Left Engine Compartment Wire Harness

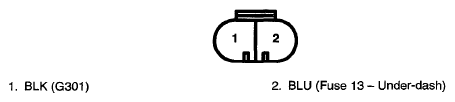

Fig 1: Left DRL Connector Terminal (View 71)

G07762944
