Fuel Tank Unit (View 181)

GRY
Center of Floor
On Floor Wire Harness

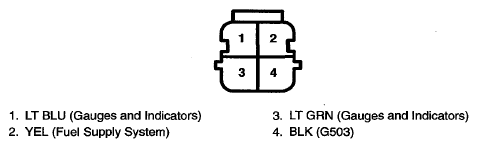

Fig 1: Fuel Tank Unit Connector Terminal (View 181)

G07763056
