Front Passenger's Power Window Switch (View 355)
Front Passenger's Power Window Switch (View 355)
GRY
Front Passenger's Door
On Front Passenger's Door Wire Harness

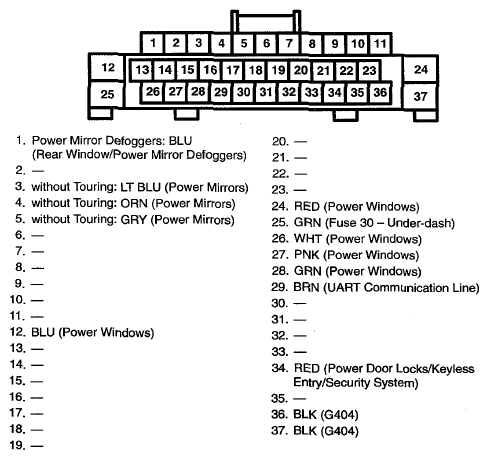

Fig 1: Front Passenger's Power Window Switch Connector Terminal (View 355)
