Front Individual Map Lights (View 149)
Front Individual Map Lights (View 149)
GRY
Front of Roof
On Roof Wire Harness

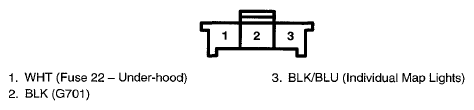

Fig 1: Front Individual Map Lights Connector Terminal (View 149)
