Front Blower Power Transistor (View 176)

NAT
Under Right Side of Dash
On A/C Wire Harness

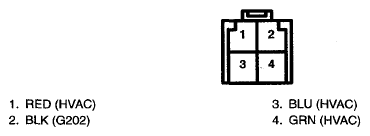

Fig 1: Front Blower Power Transistor Connector Terminal (View 176)

G07763051
