Front Accessory Power Socket (View 53)

BLK
Middle of Dash
On Dashboard Wire Harness

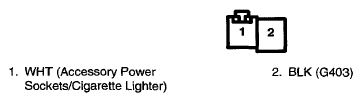

Fig 1: Front Accessory Power Socket Connector Terminal (View 53)

G07762926
