ECT Sensor 2 (View 50)

BLK
Under Left Front of Engine Compartment
On ECT Sensor Sub-harness

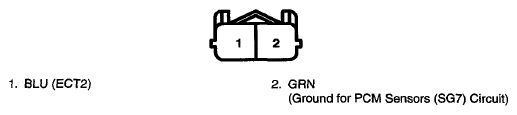

Fig 1: ECT Sensor 2 Connector Terminal (View 50)

G07762923
