ECT Sensor 1 (View 49)

BLK
Left Side of Engine
On Engine Wire Harness

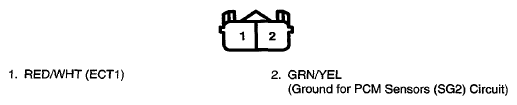

Fig 1: ECT Sensor 1 Connector Terminal (View 49)

G07762922
