Combination Light Switch (View 290)

BLK/WHT
In Steering Column Cover
On Dashboard Wire Harness

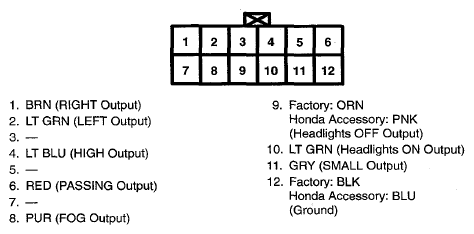

Fig 1: Combination Light Switch Connector Terminal (View 290)

G07763167
