Pilot EX, 3.5 4
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
Automatic Lighting Control Unit (View 310)
Automatic Lighting Control Unit (View 310)
GRN
Under Left Side of Dash
On Dashboard Wire Harness

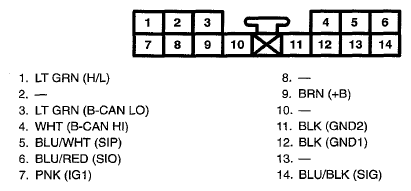

Fig 1: Automatic Lighting Control Unit Connector Terminal (View 310)
