Audio Unit (View 357)

Connector A

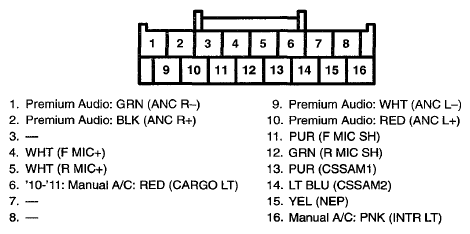

Fig 1: Audio Unit Connector A Terminal (View 357)

Connector B

• GRY
• On Dashboard Wire Harness

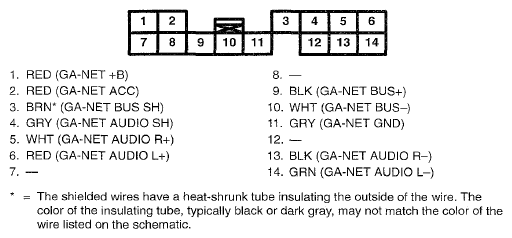

Fig 2: Audio Unit Connector B Terminal (View 357)

Connector C (XM Radio)

• WHT
• On Dashboard Wire Harness

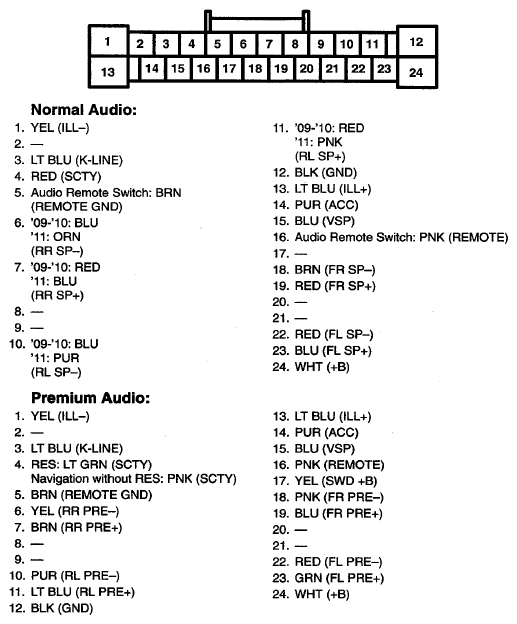

Fig 3: Audio Unit (XM Radio) Connector C Terminal (View 357)

Connector D

• GRY
• On Dashboard Wire Harness

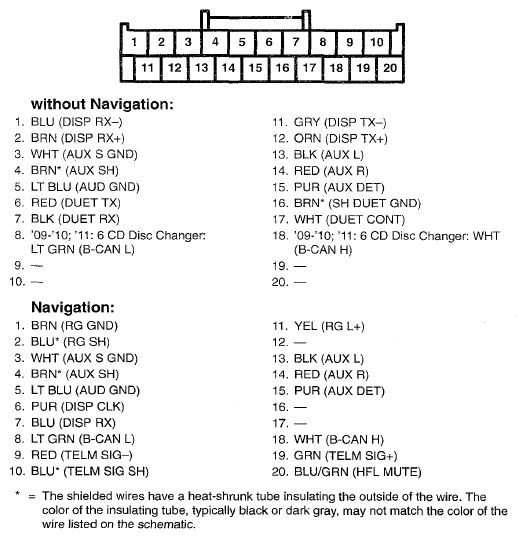

Fig 4: Audio Unit Connector D Terminal (View 357)

Connector E

• GRY
• On Dashboard Wire Harness

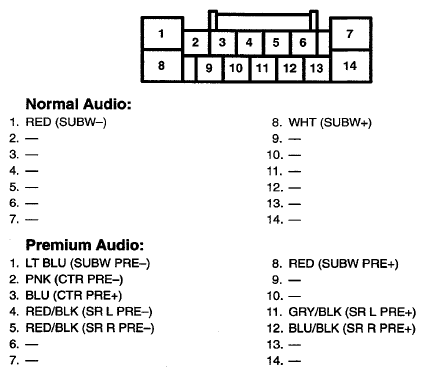

Fig 5: Audio Unit Connector E Terminal (View 357)

Connector F (RES)

• GRY
• On Dashboard Wire Harness

Fig 6: Audio Unit (RES) Connector F Terminal (View 357)

Connector G

• GRY
• On AM/FM Antenna Sub-lead Harness

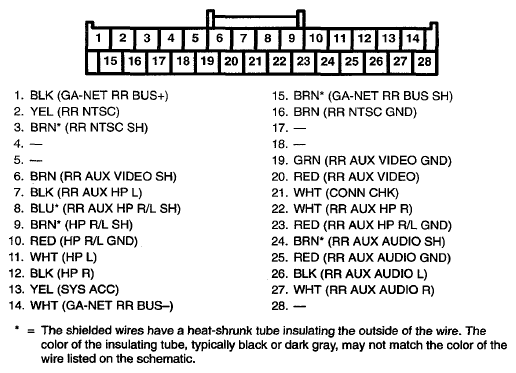

Fig 7: Audio Unit Connector G Terminal (View 357)
