ATF Temperature Sensor (View 33)

GRY
Under Transmission Housing
On Engine Wire Harness

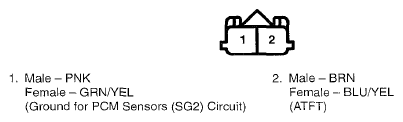

Fig 1: ATF Temperature Sensor Connector Terminal (View 33)

G07762906
